Preprocessing#
1: Import & Load Data#
Import library dan load metadata dari CSV.
import os
import librosa
import librosa.display
import numpy as np
import matplotlib.pyplot as plt
import IPython.display as ipd
# Path & parameter
TRAIN_DIR = "datasetaudio/train"
# Parameter preprocessing
TARGET_SR = 22050 # target sample rate
TARGET_DURATION = 1.0 # target durasi 1 detik
MAX_LEN = int(TARGET_SR * TARGET_DURATION)
TEST_SIZE = 0.2 # (tetap ada, meskipun tidak dipakai di cell ini)
RANDOM_STATE = 42 # reproducibility
# Pilihan file contoh: ambil speaker 'asep' kalau ada, action 'buka', index ke-2 (manusia) -> idx=1
PREFERRED_SPEAKER = "asep"
PREFERRED_ACTION = "buka"
TARGET_INDEX = 1
2. Fungsi Preprocessing#
def preprocess_audio(file_path, target_sr=TARGET_SR, target_len=MAX_LEN, noise_reduction=True):
"""
Membaca audio dan mengubah ke bentuk konsisten (sample rate, durasi, normalisasi)
"""
# 1. Load audio (resample ke target_sr)
y, sr = librosa.load(file_path, sr=target_sr)
# 2. Trim ke durasi tetap (potong / pad)
if len(y) < target_len:
y = np.pad(y, (0, target_len - len(y)), mode='constant')
else:
y = y[:target_len]
# 3. Normalisasi amplitudo (skala -1 sampai 1)
y = y / (np.max(np.abs(y)) + 1e-6)
# 4. Hilangkan noise kecil (threshold sederhana)
if noise_reduction:
y[np.abs(y) < 0.005] = 0.0
return y, sr
3. Contoh Sebelum dan Sesudah dilakukan Preprocessing#
def find_sample_file(train_dir, speaker_pref=PREFERRED_SPEAKER, action_pref=PREFERRED_ACTION, target_idx=TARGET_INDEX):
# ambil speaker yang tersedia (deterministik: sorted)
speakers = sorted([d for d in os.listdir(train_dir) if os.path.isdir(os.path.join(train_dir, d))])
if len(speakers) == 0:
raise FileNotFoundError(f"Tidak ada folder speaker di {train_dir}")
# pilih speaker preferred jika ada, kalau tidak pakai speaker pertama
speaker = speaker_pref if speaker_pref in speakers else speakers[0]
speaker_path = os.path.join(train_dir, speaker)
# ambil action yang tersedia di speaker (deterministik: sorted)
actions = sorted([d for d in os.listdir(speaker_path) if os.path.isdir(os.path.join(speaker_path, d))])
if len(actions) == 0:
raise FileNotFoundError(f"Tidak ada subfolder (buka/tutup) di {speaker_path}")
action = action_pref if action_pref in actions else actions[0]
action_path = os.path.join(speaker_path, action)
# ambil file audio yang valid
valid_exts = (".wav", ".mp3", ".flac", ".ogg", ".m4a")
files = sorted([f for f in os.listdir(action_path) if f.lower().endswith(valid_exts)])
if len(files) == 0:
raise FileNotFoundError(f"Tidak ada file audio di {action_path}")
idx = target_idx if target_idx < len(files) else (len(files) - 1)
return os.path.join(action_path, files[idx]), speaker, action, files[idx]
# ---------------------------------------
# Dapatkan sample file (asep/buka index ke-2 jika tersedia)
try:
sample_file, spk, act, fname = find_sample_file(TRAIN_DIR)
except Exception as e:
print("Gagal menemukan sample file:", e)
sample_file = None
if sample_file:
# load asli (tanpa resample) untuk perbandingan
y_raw, sr_raw = librosa.load(sample_file, sr=None)
# preprocess dengan fungsi kita (resampled ke TARGET_SR dan dipotong/pad jadi MAX_LEN)
y_proc, sr_proc = preprocess_audio(sample_file)
print(f"Sample file : {sample_file}")
print(f"Speaker / Action : {spk} / {act} (filename: {fname})")
print(f"Sample rate asli : {sr_raw} Hz | Durasi asli: {len(y_raw)/sr_raw:.2f} s")
print(f"Sample rate setelah pr : {sr_proc} Hz | Durasi baru : {len(y_proc)/sr_proc:.2f} s")

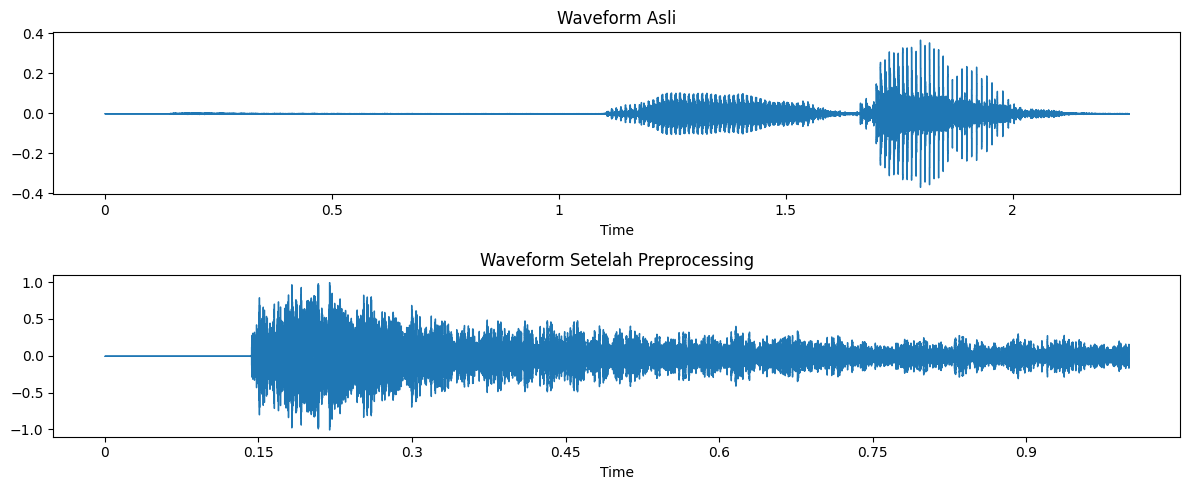

# Plot waveform sebelum dan sesudah
fig, ax = plt.subplots(2, 1, figsize=(12, 5))
librosa.display.waveshow(y_raw, sr=sr_raw, ax=ax[0])
ax[0].set_title("Waveform Asli")
librosa.display.waveshow(y_proc, sr=sr_proc, ax=ax[1])
ax[1].set_title("Waveform Setelah Preprocessing")
plt.tight_layout()
plt.show()
# Putar audio sebelum dan sesudah
print("🔊 Sebelum preprocessing:")
display(ipd.Audio(y_raw, rate=sr_raw))
print("🔊 Setelah preprocessing:")
display(ipd.Audio(y_proc, rate=sr_proc))
else:
print("Tidak ada sample file untuk ditampilkan.")
Sample file : datasetaudio/train/asep/buka/Buka10.wav
Speaker / Action : asep / buka (filename: Buka10.wav)
Sample rate asli : 48000 Hz | Durasi asli: 2.26 s
Sample rate setelah pr : 22050 Hz | Durasi baru : 1.00 s
🔊 Sebelum preprocessing:
🔊 Setelah preprocessing:
4. DATASET HASIL PREPROCESSING#
import os
import tqdm
import joblib
from collections import Counter
from sklearn.model_selection import train_test_split
def preprocess_dataset_with_split(base_path, test_size=0.2, random_state=42):
"""
Membaca seluruh file audio dari struktur:
base_path/
speaker1/
action1/
action2/
speaker2/
action1/
action2/
Lalu preprocessing (memanggil preprocess_audio) dan split ke train/val.
Mengembalikan list of tuples: (y, speaker, action, filename)
"""
all_items = [] # akan berisi dict: {'y':..., 'speaker':..., 'action':..., 'combined':..., 'filename':...}
valid_exts = (".wav", ".mp3", ".flac", ".ogg", ".m4a")
# traverse speakers
speakers = sorted([d for d in os.listdir(base_path) if os.path.isdir(os.path.join(base_path, d))])
if not speakers:
raise FileNotFoundError(f"Tidak ditemukan folder speaker di: {base_path}")
for sp in speakers:
sp_path = os.path.join(base_path, sp)
actions = sorted([d for d in os.listdir(sp_path) if os.path.isdir(os.path.join(sp_path, d))])
if not actions:
print(f"Warning: speaker '{sp}' tidak punya subfolder action. Lewat.")
continue
for act in actions:
act_path = os.path.join(sp_path, act)
files = sorted([f for f in os.listdir(act_path) if f.lower().endswith(valid_exts)])
print(f"Processing {len(files)} files for {sp}/{act} ...")
for fn in tqdm.tqdm(files, desc=f"{sp}/{act}"):
fp = os.path.join(act_path, fn)
try:
y, sr = preprocess_audio(fp) # gunakan fungsi preprocess_audio kamu
combined = f"{sp}_{act}"
all_items.append({
'y': y,
'speaker': sp,
'action': act,
'combined': combined,
'filename': fn
})
except Exception as e:
print(f" Gagal proses {fp}: {e}")
continue
if len(all_items) == 0:
raise RuntimeError("Tidak ada file audio yang berhasil diproses.")
# Persiapkan X dan label untuk split (stratify berdasarkan combined label)
X = [d['y'] for d in all_items]
combined_labels = [d['combined'] for d in all_items]
# Gunakan stratify pada combined_labels agar distribusi tiap kombinasi terjaga
X_train, X_val, y_comb_train, y_comb_val, idx_train, idx_val = train_test_split(
X, combined_labels, list(range(len(X))),
test_size=test_size, random_state=random_state, stratify=combined_labels
)
# Build train/val datasets (kembalikan speaker/action/filename juga)
train_data = []
val_data = []
# create mapping from index to original dict entry
for i in idx_train:
entry = all_items[i]
train_data.append((entry['y'], entry['speaker'], entry['action'], entry['filename']))
for i in idx_val:
entry = all_items[i]
val_data.append((entry['y'], entry['speaker'], entry['action'], entry['filename']))
return train_data, val_data
# ---- Jalankan preprocessing + split ----
train_data, val_data = preprocess_dataset_with_split(TRAIN_DIR, test_size=TEST_SIZE, random_state=RANDOM_STATE)
# Simpan hasil preprocessing ke file
joblib.dump(train_data, "train_preprocessed.pkl")
joblib.dump(val_data, "val_preprocessed.pkl")
print(f"\n✅ Data berhasil di-split:")
print(f" Training : {len(train_data)} samples")
print(f" Validation : {len(val_data)} samples")
# Cek distribusi kelas setelah split (speaker / action / combined)
train_speakers = [t[1] for t in train_data]
train_actions = [t[2] for t in train_data]
train_combined = [f"{t[1]}_{t[2]}" for t in train_data]
val_speakers = [t[1] for t in val_data]
val_actions = [t[2] for t in val_data]
val_combined = [f"{t[1]}_{t[2]}" for t in val_data]
print("\n📊 Distribusi setelah split (TRAIN):")
print(" Speakers :", dict(Counter(train_speakers)))
print(" Actions :", dict(Counter(train_actions)))
print(" Combined :", dict(Counter(train_combined)))
print("\n📊 Distribusi setelah split (VAL):")
print(" Speakers :", dict(Counter(val_speakers)))
print(" Actions :", dict(Counter(val_actions)))
print(" Combined :", dict(Counter(val_combined)))
Processing 50 files for asep/buka ...
asep/buka: 100%|██████████| 50/50 [00:01<00:00, 43.01it/s]
Processing 50 files for asep/tutup ...
asep/tutup: 100%|██████████| 50/50 [00:01<00:00, 35.57it/s]
Processing 50 files for yotan/buka ...
yotan/buka: 100%|██████████| 50/50 [00:00<00:00, 55.56it/s]
Processing 50 files for yotan/tutup ...
yotan/tutup: 100%|██████████| 50/50 [00:00<00:00, 76.61it/s]
✅ Data berhasil di-split:
Training : 160 samples
Validation : 40 samples
📊 Distribusi setelah split (TRAIN):
Speakers : {'asep': 80, 'yotan': 80}
Actions : {'tutup': 80, 'buka': 80}
Combined : {'asep_tutup': 40, 'yotan_tutup': 40, 'asep_buka': 40, 'yotan_buka': 40}
📊 Distribusi setelah split (VAL):
Speakers : {'asep': 20, 'yotan': 20}
Actions : {'buka': 20, 'tutup': 20}
Combined : {'asep_buka': 10, 'yotan_buka': 10, 'asep_tutup': 10, 'yotan_tutup': 10}
import seaborn as sns
from collections import Counter
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
# Buat label baru (combined) dari train_data & val_data
train_labels = [f"{sp}_{act}" for _, sp, act, _ in train_data]
val_labels = [f"{sp}_{act}" for _, sp, act, _ in val_data]
train_counter = Counter(train_labels)
val_counter = Counter(val_labels)
# Siapkan dataframe untuk plot
split_data = []
all_labels = sorted(list(set(train_labels + val_labels)))
for label in all_labels:
split_data.append({'Dataset': 'Train', 'Label': label, 'Jumlah': train_counter.get(label, 0)})
split_data.append({'Dataset': 'Validation', 'Label': label, 'Jumlah': val_counter.get(label, 0)})
df_split = pd.DataFrame(split_data)

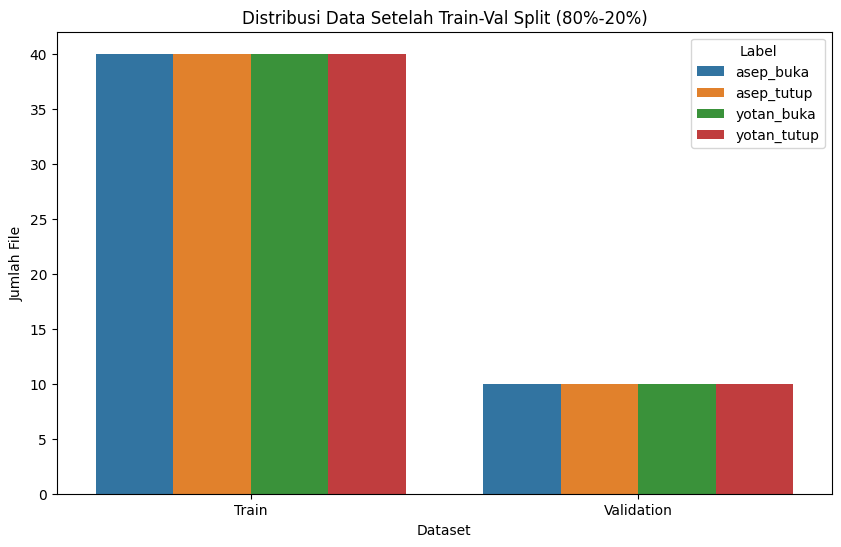

plt.figure(figsize=(10, 6))
sns.barplot(data=df_split, x='Dataset', y='Jumlah', hue='Label')
plt.title("Distribusi Data Setelah Train-Val Split (80%-20%)")
plt.ylabel("Jumlah File")
plt.show()
# --- Proporsi Split ---
print("\nProporsi split:")
total_train = sum(train_counter.values())
total_val = sum(val_counter.values())
total_all = total_train + total_val
print(f"Training: {total_train}/{total_all} = {total_train/total_all*100:.1f}%")
print(f"Validation: {total_val}/{total_all} = {total_val/total_all*100:.1f}%")

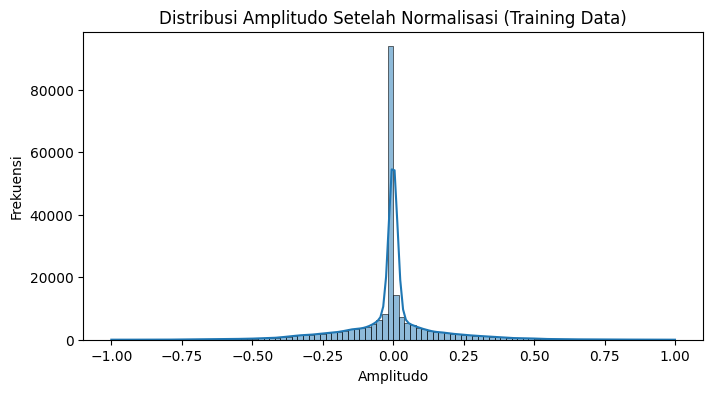

# --- Analisis distribusi amplitudo ---
samples = [y for (y, _, _, _) in train_data[:10]] # ambil 10 contoh waveform
amps = np.concatenate(samples)
plt.figure(figsize=(8,4))
sns.histplot(amps, bins=100, kde=True)
plt.title("Distribusi Amplitudo Setelah Normalisasi (Training Data)")
plt.xlabel("Amplitudo")
plt.ylabel("Frekuensi")
plt.show()
Proporsi split:
Training: 160/200 = 80.0%
Validation: 40/200 = 20.0%
Feature Extraction (Statistik Time Series) Suara Buka Tutup#
1. Import dan load data#
# Feature extraction adapted for datasetaudio/train/{speaker}/{action} format
import numpy as np
import pandas as pd
import librosa
import scipy.stats
import joblib
import tqdm
import json
import os
# load preprocessed data (format: (y, speaker, action, filename))
train_data = joblib.load("train_preprocessed.pkl")
val_data = joblib.load("val_preprocessed.pkl")
print(f"Data berhasil dimuat. Total train: {len(train_data)}, val: {len(val_data)}")
Data berhasil dimuat. Total train: 160, val: 40
2. Fungsi Ekstraksi Fitur#
def extract_comprehensive_features(y, sr=22050):
feats = {}
# ensure numpy array
y = np.asarray(y, dtype=float)
# BASIC STATISTICS
feats['stat_mean'] = np.mean(y)
feats['stat_std'] = np.std(y)
feats['stat_var'] = np.var(y)
feats['stat_skew'] = float(scipy.stats.skew(y)) if y.size > 2 else 0.0
feats['stat_kurt'] = float(scipy.stats.kurtosis(y)) if y.size > 2 else 0.0
feats['stat_min'] = np.min(y)
feats['stat_max'] = np.max(y)
feats['stat_range']= feats['stat_max'] - feats['stat_min']
feats['stat_median']= np.median(y)
feats['stat_q25'] = np.percentile(y, 25)
feats['stat_q75'] = np.percentile(y, 75)
feats['stat_iqr'] = feats['stat_q75'] - feats['stat_q25']
# TEMPORAL FEATURES
feats['temp_rms'] = float(np.sqrt(np.mean(y**2)))
feats['temp_energy'] = float(np.sum(y**2))
try:
feats['temp_zcr'] = float(np.mean(librosa.feature.zero_crossing_rate(y)))
except Exception:
feats['temp_zcr'] = 0.0
# Autocorrelation (partial)
try:
autocorr = np.correlate(y, y, mode='full')
autocorr = autocorr[autocorr.size // 2:]
feats['temp_autocorr_max'] = float(np.max(autocorr[1:100])) if autocorr.size>1 else 0.0
except Exception:
feats['temp_autocorr_max'] = 0.0
# Peak analysis (on absolute waveform)
try:
peaks = librosa.util.peak_pick(np.abs(y), pre_max=3, post_max=3, pre_avg=3, post_avg=5, delta=0.02, wait=10)
feats['temp_peak_count'] = int(len(peaks))
feats['temp_peak_mean'] = float(np.mean(np.abs(y[peaks])) ) if len(peaks)>0 else 0.0
except Exception:
feats['temp_peak_count'] = 0
feats['temp_peak_mean'] = 0.0
# Onset detection
try:
onset_frames = librosa.onset.onset_detect(y=y, sr=sr)
feats['temp_onset_count'] = int(len(onset_frames))
feats['temp_onset_rate'] = float(len(onset_frames) / (len(y) / sr)) if len(y)>0 else 0.0
except Exception:
feats['temp_onset_count'] = 0
feats['temp_onset_rate'] = 0.0
# SPECTRAL FEATURES (wrap each in try/except to be robust for short signals)
try:
centroid = librosa.feature.spectral_centroid(y=y, sr=sr)
feats['spec_centroid_mean'] = float(np.mean(centroid))
feats['spec_centroid_std'] = float(np.std(centroid))
except Exception:
feats['spec_centroid_mean'] = feats['spec_centroid_std'] = 0.0
try:
bandwidth = librosa.feature.spectral_bandwidth(y=y, sr=sr)
feats['spec_bandwidth_mean'] = float(np.mean(bandwidth))
feats['spec_bandwidth_std'] = float(np.std(bandwidth))
except Exception:
feats['spec_bandwidth_mean'] = feats['spec_bandwidth_std'] = 0.0
try:
rolloff = librosa.feature.spectral_rolloff(y=y, sr=sr)
feats['spec_rolloff_mean'] = float(np.mean(rolloff))
feats['spec_rolloff_std'] = float(np.std(rolloff))
except Exception:
feats['spec_rolloff_mean'] = feats['spec_rolloff_std'] = 0.0
try:
flatness = librosa.feature.spectral_flatness(y=y)
feats['spec_flatness_mean'] = float(np.mean(flatness))
feats['spec_flatness_std'] = float(np.std(flatness))
except Exception:
feats['spec_flatness_mean'] = feats['spec_flatness_std'] = 0.0
# Spectral contrast
try:
contrast = librosa.feature.spectral_contrast(y=y, sr=sr)
for i in range(contrast.shape[0]):
feats[f'spec_contrast_{i}_mean'] = float(np.mean(contrast[i]))
feats[f'spec_contrast_{i}_std'] = float(np.std(contrast[i]))
except Exception:
# add default zeros for up to 6 bands (librosa default)
for i in range(6):
feats[f'spec_contrast_{i}_mean'] = 0.0
feats[f'spec_contrast_{i}_std'] = 0.0
# MFCCs
try:
mfccs = librosa.feature.mfcc(y=y, sr=sr, n_mfcc=13)
for i in range(mfccs.shape[0]):
feats[f'mfcc_{i}_mean'] = float(np.mean(mfccs[i]))
feats[f'mfcc_{i}_std'] = float(np.std(mfccs[i]))
except Exception:
for i in range(13):
feats[f'mfcc_{i}_mean'] = 0.0
feats[f'mfcc_{i}_std'] = 0.0
# Chroma
try:
chroma = librosa.feature.chroma_stft(y=y, sr=sr)
for i in range(chroma.shape[0]):
feats[f'chroma_{i}_mean'] = float(np.mean(chroma[i]))
feats[f'chroma_{i}_std'] = float(np.std(chroma[i]))
except Exception:
for i in range(12):
feats[f'chroma_{i}_mean'] = 0.0
feats[f'chroma_{i}_std'] = 0.0
# Mel spec (use few mel bins for compactness)
try:
mel_spec = librosa.feature.melspectrogram(y=y, sr=sr, n_mels=10)
for i in range(mel_spec.shape[0]):
feats[f'mel_{i}_mean'] = float(np.mean(mel_spec[i]))
feats[f'mel_{i}_std'] = float(np.std(mel_spec[i]))
except Exception:
for i in range(10):
feats[f'mel_{i}_mean'] = 0.0
feats[f'mel_{i}_std'] = 0.0
# Tonnetz
try:
tonnetz = librosa.feature.tonnetz(y=librosa.effects.harmonic(y), sr=sr)
for i in range(tonnetz.shape[0]):
feats[f'tonnetz_{i}_mean'] = float(np.mean(tonnetz[i]))
feats[f'tonnetz_{i}_std'] = float(np.std(tonnetz[i]))
except Exception:
for i in range(6):
feats[f'tonnetz_{i}_mean'] = 0.0
feats[f'tonnetz_{i}_std'] = 0.0
# Spectral entropy
try:
stft = librosa.stft(y)
magnitude = np.abs(stft)
power_spec = magnitude ** 2
normalized_power = power_spec / (np.sum(power_spec, axis=0, keepdims=True) + 1e-10)
spectral_entropy = -np.sum(normalized_power * np.log2(normalized_power + 1e-10), axis=0)
feats['spec_entropy_mean'] = float(np.mean(spectral_entropy))
feats['spec_entropy_std'] = float(np.std(spectral_entropy))
except Exception:
feats['spec_entropy_mean'] = feats['spec_entropy_std'] = 0.0
# Time-domain entropy
try:
hist, _ = np.histogram(y, bins=50, density=True)
hist = hist[hist > 0]
feats['stat_entropy'] = float(-np.sum(hist * np.log2(hist))) if hist.size>0 else 0.0
except Exception:
feats['stat_entropy'] = 0.0
return feats
# ---------------------------------------------------------
# Ekstraksi fitur untuk seluruh dataset (train & val) dan simpan hasilnya
# ---------------------------------------------------------
def build_feature_dataframe(preprocessed_list, sr=22050, desc="Processing"):
records = []
for item in tqdm.tqdm(preprocessed_list, desc=desc):
y, speaker, action, filename = item
try:
feats = extract_comprehensive_features(y, sr=sr)
# tambahkan metadata label
feats['speaker'] = speaker
feats['action'] = action
feats['combined'] = f"{speaker}_{action}"
feats['filename'] = filename
records.append(feats)
except Exception as e:
print(f" Gagal ekstrak fitur untuk {filename}: {e}")
continue
df = pd.DataFrame.from_records(records)
return df
df_train_feat = build_feature_dataframe(train_data, sr=22050, desc="Train feature extraction")
df_val_feat = build_feature_dataframe(val_data, sr=22050, desc="Val feature extraction")
print("\nTrain features shape:", df_train_feat.shape)
print("Val features shape :", df_val_feat.shape)
# Simpan ke disk
df_train_feat.to_csv("features_train.csv", index=False)
df_val_feat.to_csv("features_val.csv", index=False)
joblib.dump(df_train_feat, "features_train.pkl")
joblib.dump(df_val_feat, "features_val.pkl")
print("Fitur tersimpan: features_train.csv / features_val.csv / .pkl")
# (opsional) simpan nama kolom ke json
with open("feature_columns.json", "w") as f:
json.dump(list(df_train_feat.columns), f, indent=2)
# Tampilkan 5 baris pertama sebagai sanity check
display(df_train_feat.head())
Train feature extraction: 0%| | 0/160 [00:00<?, ?it/s]/usr/local/python/3.12.1/lib/python3.12/site-packages/librosa/core/spectrum.py:266: UserWarning: n_fft=1024 is too large for input signal of length=690
warnings.warn(
/usr/local/python/3.12.1/lib/python3.12/site-packages/librosa/core/spectrum.py:266: UserWarning: n_fft=1024 is too large for input signal of length=345
warnings.warn(
Train feature extraction: 35%|███▌ | 56/160 [00:16<00:27, 3.72it/s]/usr/local/python/3.12.1/lib/python3.12/site-packages/librosa/core/pitch.py:103: UserWarning: Trying to estimate tuning from empty frequency set.
return pitch_tuning(
Train feature extraction: 100%|██████████| 160/160 [00:45<00:00, 3.55it/s]
Val feature extraction: 100%|██████████| 40/40 [00:10<00:00, 3.83it/s]
Train features shape: (160, 131)
Val features shape : (40, 131)
Fitur tersimpan: features_train.csv / features_val.csv / .pkl
| stat_mean | stat_std | stat_var | stat_skew | stat_kurt | stat_min | stat_max | stat_range | stat_median | stat_q25 | ... | tonnetz_4_std | tonnetz_5_mean | tonnetz_5_std | spec_entropy_mean | spec_entropy_std | stat_entropy | speaker | action | combined | filename | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | -0.016276 | 0.179102 | 0.032078 | 0.008991 | 1.368842 | -0.882036 | 0.998849 | 1.880886 | 0.000000 | -0.114197 | ... | 0.027926 | -0.015044 | 0.023741 | 5.792195 | 2.350596 | -16.510247 | asep | tutup | asep_tutup | Tutup8_aug_shift_30.wav |
| 1 | -0.000027 | 0.162744 | 0.026486 | 0.192526 | 8.484117 | -0.843834 | 0.999998 | 1.843832 | 0.000000 | -0.012093 | ... | 0.043394 | -0.005942 | 0.038967 | 3.878178 | 1.512613 | -46.631310 | yotan | tutup | yotan_tutup | tutup_12.wav |
| 2 | 0.000064 | 0.205671 | 0.042300 | 0.436317 | 1.038379 | -0.744213 | 0.999995 | 1.744208 | 0.000000 | -0.098123 | ... | 0.054517 | 0.092437 | 0.098517 | 3.281807 | 2.171091 | -28.026650 | yotan | tutup | yotan_tutup | tutup_4.wav |
| 3 | -0.048444 | 0.230336 | 0.053055 | -0.132969 | 0.505848 | -0.998175 | 0.851561 | 1.849736 | -0.018028 | -0.186683 | ... | 0.022436 | -0.020684 | 0.012506 | 6.161753 | 1.725480 | -5.376562 | asep | tutup | asep_tutup | Tutup10_aug_pitch_15.wav |
| 4 | -0.000096 | 0.111742 | 0.012486 | 0.723286 | 13.511356 | -0.821675 | 0.999997 | 1.821671 | 0.000000 | 0.000000 | ... | 0.038301 | 0.010803 | 0.024033 | 4.294136 | 3.093474 | -74.861962 | yotan | tutup | yotan_tutup | tutup_2_aug_noise_3.wav |
5 rows × 131 columns
3. Bangun Dataset Fitur dari train & val#
import tqdm
import pandas as pd
import joblib
from IPython.display import display
# ---------------------------------------------------------
# Fungsi pembuat dataset fitur yang disesuaikan format baru:
# preprocessed_data: list of tuples (y, speaker, action, filename)
# ---------------------------------------------------------
def build_comprehensive_feature_dataset(preprocessed_data, sr=22050, desc="Extracting comprehensive features"):
feature_list = []
for item in tqdm.tqdm(preprocessed_data, desc=desc):
try:
# unpack sesuai format (y, speaker, action, filename)
y, speaker, action, filename = item
except Exception:
# kompatibilitas jika format lama (y, label)
try:
y, label = item
speaker = None
action = None
filename = None
except Exception:
print("Format data tidak dikenali untuk item:", item)
continue
# ekstrak fitur komprehensif (pastikan fungsi ini sudah ada)
try:
feats = extract_comprehensive_features(y, sr=sr)
except Exception as e:
print(f"Gagal ekstrak fitur untuk {filename or 'unknown'}: {e}")
continue
# tambahkan metadata label sesuai kebutuhan:
# kita gunakan combined label "speaker_action" agar konsisten dengan pipeline sebelumnya
combined_label = f"{speaker}_{action}" if (speaker is not None and action is not None) else (label if 'label' in locals() else None)
feats['label'] = combined_label
feats['speaker'] = speaker
feats['action'] = action
feats['filename'] = filename
feature_list.append(feats)
df = pd.DataFrame(feature_list)
return df
# ---------------------------------------------------------
# Ekstraksi fitur untuk train & val (jalankan)
# ---------------------------------------------------------
print("Ekstraksi fitur komprehensif untuk TRAIN...")
train_features_full = build_comprehensive_feature_dataset(train_data, sr=22050, desc="Train feature extraction")
print("\nEkstraksi fitur komprehensif untuk VAL...")
val_features_full = build_comprehensive_feature_dataset(val_data, sr=22050, desc="Val feature extraction")
# ---------------------------------------------------------
# Informasi ringkas & simpan
# ---------------------------------------------------------
# jumlah fitur (kolom) dikurangi 1 kolom label -> sama cara hitungmu dulu
num_features = train_features_full.shape[1] - 1 if train_features_full.shape[1] > 0 else 0
print(f"\nTotal fitur diekstraksi: {num_features} fitur (kolom termasuk metadata)")
print("\nContoh hasil ekstraksi fitur (5 baris pertama):")
display(train_features_full.head())
# Simpan dataset lengkap
train_features_full.to_csv("train_features_full.csv", index=False)
val_features_full.to_csv("val_features_full.csv", index=False)
joblib.dump(train_features_full, "train_features_full.pkl")
joblib.dump(val_features_full, "val_features_full.pkl")
print("\nFile fitur lengkap disimpan:")
print(" - train_features_full.csv")
print(" - val_features_full.csv")
print(" - train_features_full.pkl")
print(" - val_features_full.pkl")
Ekstraksi fitur komprehensif untuk TRAIN...
Train feature extraction: 0%| | 0/160 [00:00<?, ?it/s]/usr/local/python/3.12.1/lib/python3.12/site-packages/librosa/core/spectrum.py:266: UserWarning: n_fft=1024 is too large for input signal of length=690
warnings.warn(
/usr/local/python/3.12.1/lib/python3.12/site-packages/librosa/core/spectrum.py:266: UserWarning: n_fft=1024 is too large for input signal of length=345
warnings.warn(
Train feature extraction: 35%|███▌ | 56/160 [00:15<00:26, 3.91it/s]/usr/local/python/3.12.1/lib/python3.12/site-packages/librosa/core/pitch.py:103: UserWarning: Trying to estimate tuning from empty frequency set.
return pitch_tuning(
Train feature extraction: 100%|██████████| 160/160 [00:43<00:00, 3.71it/s]
Ekstraksi fitur komprehensif untuk VAL...
Val feature extraction: 100%|██████████| 40/40 [00:10<00:00, 3.83it/s]
Total fitur diekstraksi: 130 fitur (kolom termasuk metadata)
Contoh hasil ekstraksi fitur (5 baris pertama):
| stat_mean | stat_std | stat_var | stat_skew | stat_kurt | stat_min | stat_max | stat_range | stat_median | stat_q25 | ... | tonnetz_4_std | tonnetz_5_mean | tonnetz_5_std | spec_entropy_mean | spec_entropy_std | stat_entropy | label | speaker | action | filename | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | -0.016276 | 0.179102 | 0.032078 | 0.008991 | 1.368842 | -0.882036 | 0.998849 | 1.880886 | 0.000000 | -0.114197 | ... | 0.027926 | -0.015044 | 0.023741 | 5.792195 | 2.350596 | -16.510247 | asep_tutup | asep | tutup | Tutup8_aug_shift_30.wav |
| 1 | -0.000027 | 0.162744 | 0.026486 | 0.192526 | 8.484117 | -0.843834 | 0.999998 | 1.843832 | 0.000000 | -0.012093 | ... | 0.043394 | -0.005942 | 0.038967 | 3.878178 | 1.512613 | -46.631310 | yotan_tutup | yotan | tutup | tutup_12.wav |
| 2 | 0.000064 | 0.205671 | 0.042300 | 0.436317 | 1.038379 | -0.744213 | 0.999995 | 1.744208 | 0.000000 | -0.098123 | ... | 0.054517 | 0.092437 | 0.098517 | 3.281807 | 2.171091 | -28.026650 | yotan_tutup | yotan | tutup | tutup_4.wav |
| 3 | -0.048444 | 0.230336 | 0.053055 | -0.132969 | 0.505848 | -0.998175 | 0.851561 | 1.849736 | -0.018028 | -0.186683 | ... | 0.022436 | -0.020684 | 0.012506 | 6.161753 | 1.725480 | -5.376562 | asep_tutup | asep | tutup | Tutup10_aug_pitch_15.wav |
| 4 | -0.000096 | 0.111742 | 0.012486 | 0.723286 | 13.511356 | -0.821675 | 0.999997 | 1.821671 | 0.000000 | 0.000000 | ... | 0.038301 | 0.010803 | 0.024033 | 4.294136 | 3.093474 | -74.861962 | yotan_tutup | yotan | tutup | tutup_2_aug_noise_3.wav |
5 rows × 131 columns
File fitur lengkap disimpan:
- train_features_full.csv
- val_features_full.csv
- train_features_full.pkl
- val_features_full.pkl

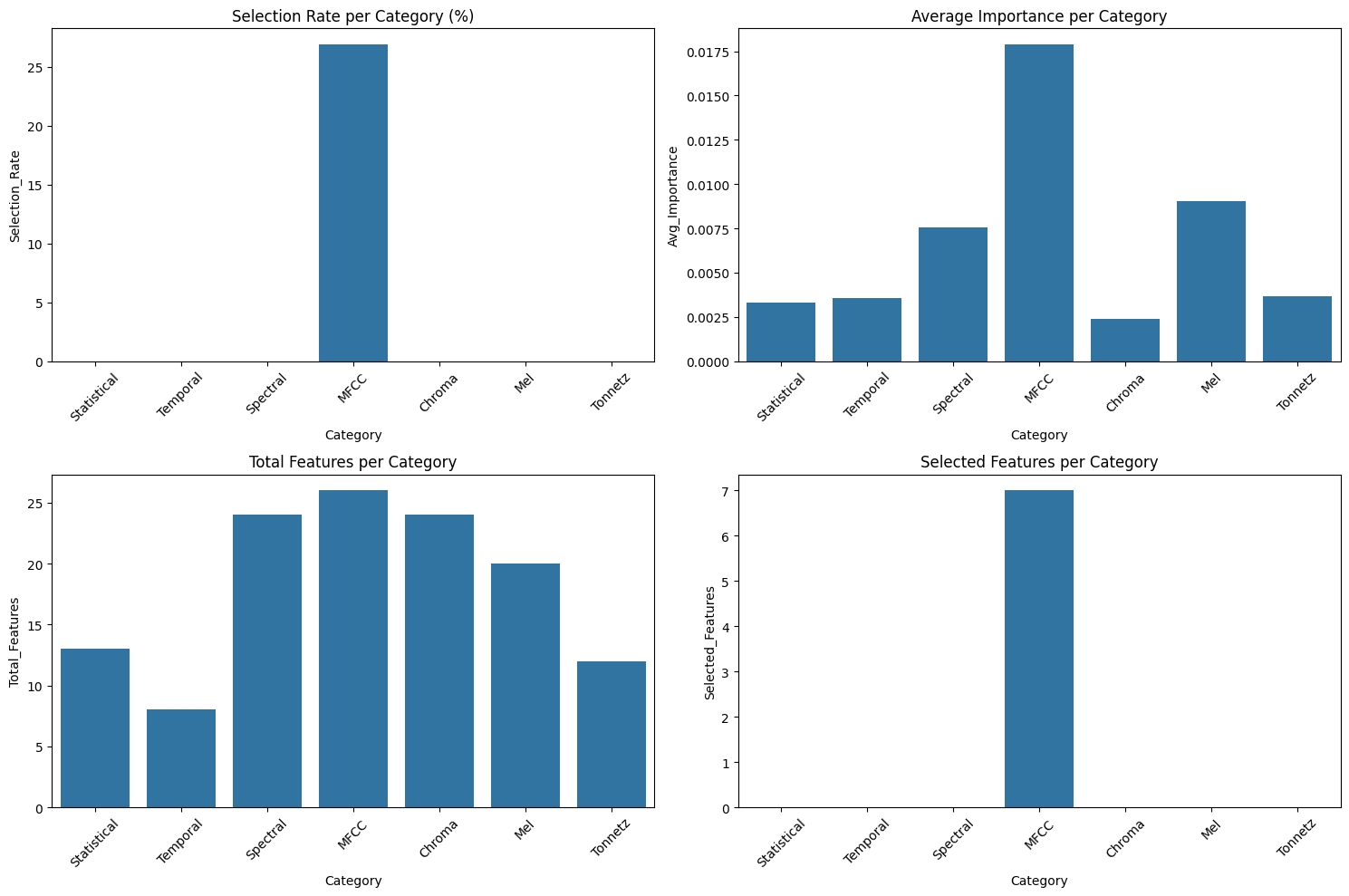

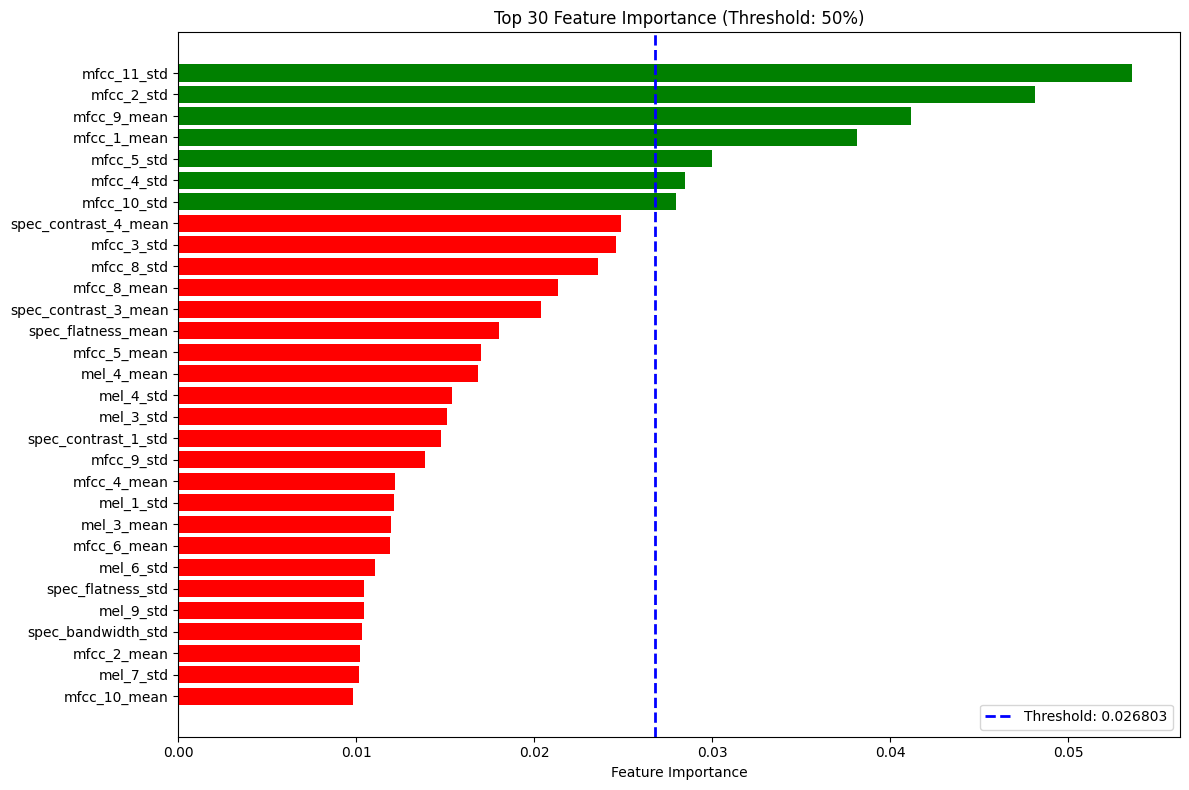

4. Feature Importance Analysis & Selection#
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.ensemble import RandomForestClassifier
import numpy as np
def feature_importance_analysis(train_df, val_df, importance_threshold=50):
# Pastikan kolom 'label' ada
if 'label' not in train_df.columns or 'label' not in val_df.columns:
raise ValueError("Dataframe harus memiliki kolom 'label'.")
# Buang kolom non-fiturnya (metadata) jika ada
meta_cols = ['label', 'speaker', 'action', 'filename']
feature_cols = [c for c in train_df.columns if c not in meta_cols]
if len(feature_cols) == 0:
raise ValueError("Tidak ada kolom fitur ditemukan di train_df setelah menghapus metadata.")
# Pisahkan fitur dan label
X_train = train_df[feature_cols].copy()
y_train = train_df['label'].copy()
X_val = val_df[feature_cols].copy()
y_val = val_df['label'].copy()
# Train Random Forest untuk mendapatkan feature importance
print("Training Random Forest untuk analisis feature importance...")
rf_temp = RandomForestClassifier(n_estimators=100, random_state=42, n_jobs=-1)
rf_temp.fit(X_train.fillna(0), y_train) # isi NaN dengan 0 jika ada
# Dapatkan feature importance
importances = pd.Series(rf_temp.feature_importances_, index=X_train.columns).sort_values(ascending=False)
# Hitung threshold berdasarkan persentase dari importance maksimum
max_importance = importances.max()
absolute_threshold = max_importance * (importance_threshold / 100)
# Fitur yang lolos threshold
selected_features = importances[importances >= absolute_threshold].index.tolist()
removed_features = importances[importances < absolute_threshold].index.tolist()
print(f"\nHASIL ANALISIS FEATURE IMPORTANCE")
print(f"{'='*50}")
print(f"Total fitur awal: {len(importances)}")
print(f"Threshold: {importance_threshold}% dari importance maksimum")
print(f"Absolute threshold: {absolute_threshold:.6f}")
print(f"Fitur yang dipilih: {len(selected_features)}")
print(f"Fitur yang dihapus: {len(removed_features)}")
# Visualisasi feature importance (top 30)
plt.figure(figsize=(12, 8))
colors = ['green' if imp >= absolute_threshold else 'red' for imp in importances.values]
top_features = importances.head(30)
top_colors = colors[:30]
plt.barh(range(len(top_features)), top_features.values, color=top_colors)
plt.yticks(range(len(top_features)), top_features.index)
plt.xlabel('Feature Importance')
plt.title(f'Top 30 Feature Importance (Threshold: {importance_threshold}%)')
plt.axvline(x=absolute_threshold, color='blue', linestyle='--', linewidth=2, label=f'Threshold: {absolute_threshold:.6f}')
plt.legend()
plt.gca().invert_yaxis()
plt.tight_layout()
plt.show()
# Analisis per kategori fitur
feature_categories = {
'Statistical': [f for f in importances.index if f.startswith('stat_')],
'Temporal': [f for f in importances.index if f.startswith('temp_')],
'Spectral': [f for f in importances.index if f.startswith('spec_')],
'MFCC': [f for f in importances.index if f.startswith('mfcc_')],
'Chroma': [f for f in importances.index if f.startswith('chroma_')],
'Mel': [f for f in importances.index if f.startswith('mel_')],
'Tonnetz': [f for f in importances.index if f.startswith('tonnetz_')]
}
category_analysis = []
for category, features in feature_categories.items():
category_features = [f for f in features if f in importances.index]
if category_features:
selected_in_category = [f for f in category_features if f in selected_features]
avg_importance = importances[category_features].mean() if len(category_features)>0 else 0.0
category_analysis.append({
'Category': category,
'Total_Features': len(category_features),
'Selected_Features': len(selected_in_category),
'Selection_Rate': (len(selected_in_category) / len(category_features) * 100) if len(category_features)>0 else 0.0,
'Avg_Importance': avg_importance
})
category_df = pd.DataFrame(category_analysis)
print(f"\nANALISIS PER KATEGORI FITUR")
print(f"{'='*50}")
if not category_df.empty:
print(category_df.to_string(index=False, float_format='%.4f'))
else:
print("Tidak ada kategori fitur yang ditemukan.")
# Visualisasi per kategori (jika ada)
if not category_df.empty:
fig, axes = plt.subplots(2, 2, figsize=(15, 10))
sns.barplot(data=category_df, x='Category', y='Selection_Rate', ax=axes[0,0])
axes[0,0].set_title('Selection Rate per Category (%)')
axes[0,0].tick_params(axis='x', rotation=45)
sns.barplot(data=category_df, x='Category', y='Avg_Importance', ax=axes[0,1])
axes[0,1].set_title('Average Importance per Category')
axes[0,1].tick_params(axis='x', rotation=45)
sns.barplot(data=category_df, x='Category', y='Total_Features', ax=axes[1,0])
axes[1,0].set_title('Total Features per Category')
axes[1,0].tick_params(axis='x', rotation=45)
sns.barplot(data=category_df, x='Category', y='Selected_Features', ax=axes[1,1])
axes[1,1].set_title('Selected Features per Category')
axes[1,1].tick_params(axis='x', rotation=45)
plt.tight_layout()
plt.show()
# Buat dataset dengan fitur terpilih (jika selected_features kosong, kembalikan original X + label)
if len(selected_features) == 0:
print("\nPeringatan: Tidak ada fitur yang melewati threshold. Mengembalikan dataset awal.")
X_train_selected = X_train.copy()
X_val_selected = X_val.copy()
else:
X_train_selected = X_train[selected_features].copy()
X_val_selected = X_val[selected_features].copy()
train_selected = X_train_selected.copy()
train_selected['label'] = y_train.values
val_selected = X_val_selected.copy()
val_selected['label'] = y_val.values
print(f"\nMENYIMPAN DATASET TERPILIH")
print(f"{'='*50}")
print(f"Shape train terpilih: {train_selected.shape}")
print(f"Shape val terpilih: {val_selected.shape}")
return train_selected, val_selected, selected_features, removed_features, importances
# ---- Jalankan analisis feature importance sesuai request ----
train_selected, val_selected, selected_features, removed_features, feature_importances = feature_importance_analysis(
train_features_full, val_features_full, importance_threshold=50
)
# Simpan hasil
train_selected.to_csv("train_features_selected.csv", index=False)
val_selected.to_csv("val_features_selected.csv", index=False)
print("\nFiles saved: train_features_selected.csv, val_features_selected.csv")
Training Random Forest untuk analisis feature importance...
HASIL ANALISIS FEATURE IMPORTANCE
==================================================
Total fitur awal: 127
Threshold: 50% dari importance maksimum
Absolute threshold: 0.026803
Fitur yang dipilih: 7
Fitur yang dihapus: 120
ANALISIS PER KATEGORI FITUR
==================================================
Category Total_Features Selected_Features Selection_Rate Avg_Importance
Statistical 13 0 0.0000 0.0033
Temporal 8 0 0.0000 0.0036
Spectral 24 0 0.0000 0.0076
MFCC 26 7 26.9231 0.0179
Chroma 24 0 0.0000 0.0024
Mel 20 0 0.0000 0.0091
Tonnetz 12 0 0.0000 0.0037
MENYIMPAN DATASET TERPILIH
==================================================
Shape train terpilih: (160, 8)
Shape val terpilih: (40, 8)
Files saved: train_features_selected.csv, val_features_selected.csv
5. Detail Analysis#
import json
def _feature_category(feature_name):
if feature_name.startswith('stat_'):
return 'Statistical'
elif feature_name.startswith('temp_'):
return 'Temporal'
elif feature_name.startswith('spec_'):
return 'Spectral'
elif feature_name.startswith('mfcc_'):
return 'MFCC'
elif feature_name.startswith('chroma_'):
return 'Chroma'
elif feature_name.startswith('mel_'):
return 'Mel'
elif feature_name.startswith('tonnetz_'):
return 'Tonnetz'
else:
return 'Other'
def detailed_feature_analysis(selected_features, removed_features, feature_importances, threshold_used=50):
"""
Analisis detail fitur yang dipilih dan yang dihapus.
feature_importances diharapkan pd.Series atau dict-like {feature: importance}
"""
# pastikan feature_importances bisa diakses seperti dict
if hasattr(feature_importances, "to_dict"):
fi_dict = feature_importances.to_dict()
else:
fi_dict = dict(feature_importances)
print(f"\nDETAIL FITUR TERPILIH")
print(f"{'='*70}")
print(f"{'Fitur':<30} {'Importance':<15} {'Kategori':<15}")
print(f"{'-'*70}")
for feature in selected_features:
importance = fi_dict.get(feature, 0.0)
category = _feature_category(feature)
print(f"{feature:<30} {importance:<15.6f} {category:<15}")
print(f"\nFITUR YANG DIHAPUS (Top 10)")
print(f"{'='*70}")
print(f"{'Fitur':<30} {'Importance':<15} {'Kategori':<15}")
print(f"{'-'*70}")
# ambil importance untuk removed_features, sortir descending dan ambil top 10
removed_with_imp = [(f, fi_dict.get(f, 0.0)) for f in removed_features]
removed_sorted = sorted(removed_with_imp, key=lambda x: x[1], reverse=True)[:10]
for feature, importance in removed_sorted:
category = _feature_category(feature)
print(f"{feature:<30} {importance:<15.6f} {category:<15}")
# Jalankan analisis detail (menggunakan variabel yang sudah ada di namespace)
detailed_feature_analysis(selected_features, removed_features, feature_importances, threshold_used=50)
# Simpan info ringkasan ke JSON
feature_info = {
'selected_features': list(selected_features),
'removed_features': list(removed_features),
'feature_importances': {k: float(v) for k, v in (feature_importances.to_dict().items() if hasattr(feature_importances, "to_dict") else feature_importances.items())},
'threshold_used': 50,
'total_original_features': len(feature_importances),
'total_selected_features': len(selected_features),
'total_removed_features': len(removed_features)
}
with open('feature_selection_info.json', 'w') as f:
json.dump(feature_info, f, indent=2)
print(f"\nInformasi feature selection disimpan ke: feature_selection_info.json")
DETAIL FITUR TERPILIH
======================================================================
Fitur Importance Kategori
----------------------------------------------------------------------
mfcc_11_std 0.053605 MFCC
mfcc_2_std 0.048116 MFCC
mfcc_9_mean 0.041195 MFCC
mfcc_1_mean 0.038149 MFCC
mfcc_5_std 0.029991 MFCC
mfcc_4_std 0.028459 MFCC
mfcc_10_std 0.027964 MFCC
FITUR YANG DIHAPUS (Top 10)
======================================================================
Fitur Importance Kategori
----------------------------------------------------------------------
spec_contrast_4_mean 0.024859 Spectral
mfcc_3_std 0.024608 MFCC
mfcc_8_std 0.023554 MFCC
mfcc_8_mean 0.021348 MFCC
spec_contrast_3_mean 0.020404 Spectral
spec_flatness_mean 0.018023 Spectral
mfcc_5_mean 0.017030 MFCC
mel_4_mean 0.016861 Mel
mel_4_std 0.015398 Mel
mel_3_std 0.015081 Mel
Informasi feature selection disimpan ke: feature_selection_info.json
6. Outlier Detection & Handling#
from sklearn.ensemble import IsolationForest
from sklearn.preprocessing import StandardScaler
def detect_outliers_multiple_methods(df, contamination=0.1):
"""
Mendeteksi outlier menggunakan:
1. IQR Method
2. Z-Score Method
3. Isolation Forest
Return:
dictionary berisi mask outlier & X_scaled
"""
X = df.drop(columns=['label'])
labels = df['label']
# ------------------------------
# METHOD 1: IQR
# ------------------------------
Q1 = X.quantile(0.25)
Q3 = X.quantile(0.75)
IQR = Q3 - Q1
outlier_mask_iqr = ((X < (Q1 - 1.5 * IQR)) | (X > (Q3 + 1.5 * IQR))).any(axis=1)
# ------------------------------
# METHOD 2: Z-SCORE (|z| > 3)
# ------------------------------
scaler = StandardScaler()
X_scaled = pd.DataFrame(scaler.fit_transform(X), columns=X.columns)
outlier_mask_zscore = (np.abs(X_scaled) > 3).any(axis=1)
# ------------------------------
# METHOD 3: Isolation Forest
# ------------------------------
iso_forest = IsolationForest(contamination=contamination, random_state=42)
outlier_mask_iso = iso_forest.fit_predict(X_scaled) == -1
return {
'iqr_outliers': outlier_mask_iqr,
'zscore_outliers': outlier_mask_zscore,
'isolation_outliers': outlier_mask_iso,
'X_scaled': X_scaled
}
def analyze_outliers(train_df, val_df, contamination=0.1):
"""
Analisis outlier pada training dan validation:
- Hitung jumlah outlier

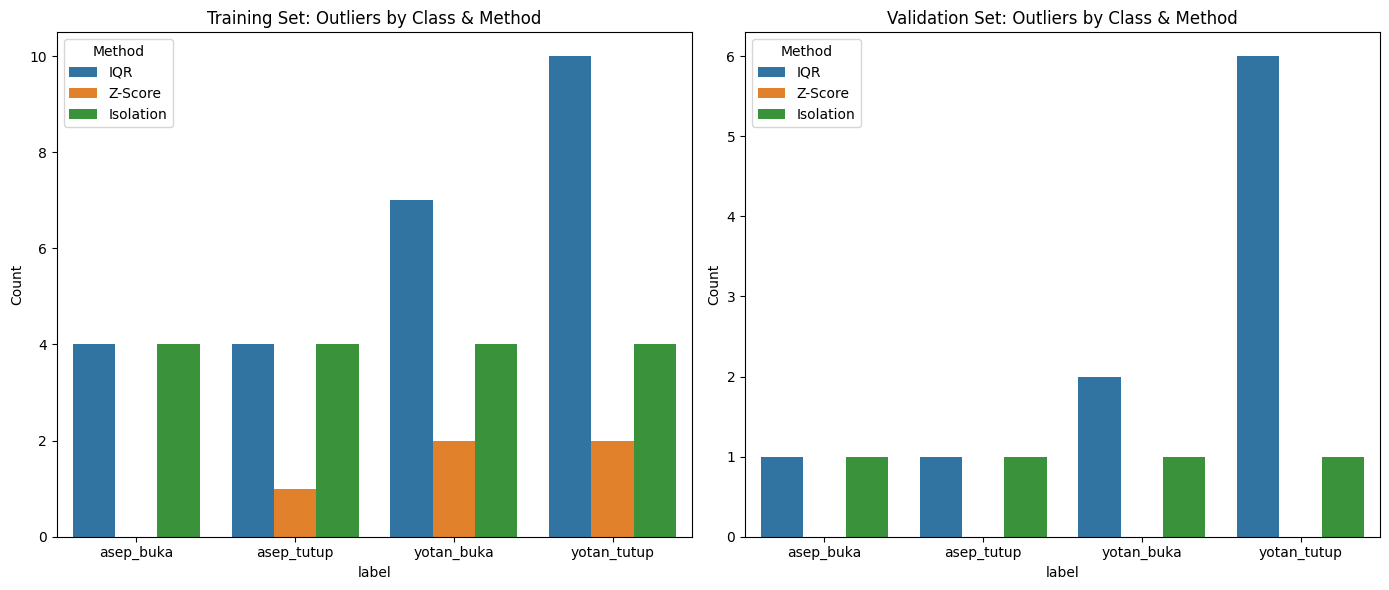

- Visualisasi outlier per kelas tanpa boxplot (barplot)
Output sama dengan kode versi kamu.
"""
print("ANALISIS OUTLIER")
print("="*50)
# Deteksi outlier di training set dan validation set
train_outliers = detect_outliers_multiple_methods(train_df, contamination)
val_outliers = detect_outliers_multiple_methods(val_df, contamination)
# Hitung statistik outlier
train_iqr_count = train_outliers['iqr_outliers'].sum()
train_zscore_count = train_outliers['zscore_outliers'].sum()
train_iso_count = train_outliers['isolation_outliers'].sum()
val_iqr_count = val_outliers['iqr_outliers'].sum()
val_zscore_count = val_outliers['zscore_outliers'].sum()
val_iso_count = val_outliers['isolation_outliers'].sum()
# ------------------------------ PRINT OUTPUT ------------------------------
print(f"TRAINING SET ({len(train_df)} samples):")
print(f" IQR Method: {train_iqr_count} outliers ({train_iqr_count/len(train_df)*100:.1f}%)")
print(f" Z-Score Method: {train_zscore_count} outliers ({train_zscore_count/len(train_df)*100:.1f}%)")
print(f" Isolation Forest: {train_iso_count} outliers ({train_iso_count/len(train_df)*100:.1f}%)")
print(f"\nVALIDATION SET ({len(val_df)} samples):")
print(f" IQR Method: {val_iqr_count} outliers ({val_iqr_count/len(val_df)*100:.1f}%)")
print(f" Z-Score Method: {val_zscore_count} outliers ({val_zscore_count/len(val_df)*100:.1f}%)")
print(f" Isolation Forest: {val_iso_count} outliers ({val_iso_count/len(val_df)*100:.1f}%)")
# ------------------------------ VISUALISASI ------------------------------
fig, axes = plt.subplots(1, 2, figsize=(14, 6))
# Training outliers by class
train_outlier_by_class = train_df.groupby('label').apply(
lambda x: pd.Series({
'IQR': detect_outliers_multiple_methods(x)['iqr_outliers'].sum(),
'Z-Score': detect_outliers_multiple_methods(x)['zscore_outliers'].sum(),
'Isolation': detect_outliers_multiple_methods(x)['isolation_outliers'].sum()
})
).reset_index()
train_outlier_melted = pd.melt(train_outlier_by_class, id_vars=['label'],
var_name='Method', value_name='Count')
sns.barplot(data=train_outlier_melted, x='label', y='Count', hue='Method', ax=axes[0])
axes[0].set_title('Training Set: Outliers by Class & Method')
# Validation outliers by class
val_outlier_by_class = val_df.groupby('label').apply(
lambda x: pd.Series({
'IQR': detect_outliers_multiple_methods(x)['iqr_outliers'].sum(),
'Z-Score': detect_outliers_multiple_methods(x)['zscore_outliers'].sum(),
'Isolation': detect_outliers_multiple_methods(x)['isolation_outliers'].sum()
})
).reset_index()
val_outlier_melted = pd.melt(val_outlier_by_class, id_vars=['label'],
var_name='Method', value_name='Count')
sns.barplot(data=val_outlier_melted, x='label', y='Count', hue='Method', ax=axes[1])
axes[1].set_title('Validation Set: Outliers by Class & Method')
plt.tight_layout()
plt.show()
return train_outliers, val_outliers
def remove_outliers_consensus(df, outlier_results, min_methods=2):
"""
Menghapus outlier berdasarkan konsensus dari 3 metode:
- IQR
- Z-Score
- Isolation Forest
Outlier dihapus jika terdeteksi oleh >= min_methods.
Output sama persis dengan kode versi kamu.
"""
# Hitung total metode yang mendeteksi outlier per sample
outlier_counts = (
outlier_results['iqr_outliers'].astype(int) +
outlier_results['zscore_outliers'].astype(int) +
outlier_results['isolation_outliers'].astype(int)
)
# Mask consensus
consensus_outliers = outlier_counts >= min_methods
# Pisahkan data
clean_df = df[~consensus_outliers].copy()
removed_df = df[consensus_outliers].copy()
# ------------------------------ PRINT OUTPUT ------------------------------
print(f"Outlier removal dengan consensus:")
print(f" Original samples: {len(df)}")
print(f" Outliers removed: {len(removed_df)} ({len(removed_df)/len(df)*100:.1f}%)")
print(f" Clean samples: {len(clean_df)} ({len(clean_df)/len(df)*100:.1f}%)")
# Distribusi kelas
original_dist = df['label'].value_counts()
clean_dist = clean_df['label'].value_counts()
removed_dist = removed_df['label'].value_counts() if len(removed_df) > 0 else pd.Series(dtype=int)
print("\nDistribusi kelas:")
print(f" Original: {dict(original_dist)}")
print(f" Clean: {dict(clean_dist)}")
if len(removed_dist) > 0:
print(f" Removed: {dict(removed_dist)}")
return clean_df, removed_df
# Pastikan import yang dibutuhkan ada
import pandas as pd
# Jalankan analisis outlier (menggunakan fungsi analyze_outliers yang sudah didefinisikan)
train_outliers, val_outliers = analyze_outliers(train_selected, val_selected, contamination=0.1)
# Hapus outlier dengan consensus (>= 2 metode)
train_clean, train_removed = remove_outliers_consensus(train_selected, train_outliers, min_methods=2)
val_clean, val_removed = remove_outliers_consensus(val_selected, val_outliers, min_methods=2)
# Simpan dataset clean dan yang dihapus ke CSV
train_clean.to_csv("train_features_clean.csv", index=False)
val_clean.to_csv("val_features_clean.csv", index=False)
train_removed.to_csv("train_outliers_removed.csv", index=False)
val_removed.to_csv("val_outliers_removed.csv", index=False)
# Print ringkasan hasil (format sama persis seperti yang kamu contohkan)
print(f"\nDataset clean disimpan:")
print(f" train_features_clean.csv: {train_clean.shape}")
print(f" val_features_clean.csv: {val_clean.shape}")
print(f" train_outliers_removed.csv: {train_removed.shape}")
print(f" val_outliers_removed.csv: {val_removed.shape}")
ANALISIS OUTLIER
==================================================
TRAINING SET (160 samples):
IQR Method: 7 outliers (4.4%)
Z-Score Method: 1 outliers (0.6%)
Isolation Forest: 16 outliers (10.0%)
VALIDATION SET (40 samples):
IQR Method: 11 outliers (27.5%)
Z-Score Method: 0 outliers (0.0%)
Isolation Forest: 4 outliers (10.0%)
/tmp/ipykernel_3197/476795135.py:84: FutureWarning: DataFrameGroupBy.apply operated on the grouping columns. This behavior is deprecated, and in a future version of pandas the grouping columns will be excluded from the operation. Either pass `include_groups=False` to exclude the groupings or explicitly select the grouping columns after groupby to silence this warning.
train_outlier_by_class = train_df.groupby('label').apply(
/tmp/ipykernel_3197/476795135.py:99: FutureWarning: DataFrameGroupBy.apply operated on the grouping columns. This behavior is deprecated, and in a future version of pandas the grouping columns will be excluded from the operation. Either pass `include_groups=False` to exclude the groupings or explicitly select the grouping columns after groupby to silence this warning.
val_outlier_by_class = val_df.groupby('label').apply(
Outlier removal dengan consensus:
Original samples: 160
Outliers removed: 4 (2.5%)
Clean samples: 156 (97.5%)
Distribusi kelas:
Original: {'asep_tutup': np.int64(40), 'yotan_tutup': np.int64(40), 'asep_buka': np.int64(40), 'yotan_buka': np.int64(40)}
Clean: {'asep_tutup': np.int64(40), 'yotan_tutup': np.int64(40), 'asep_buka': np.int64(40), 'yotan_buka': np.int64(36)}
Removed: {'yotan_buka': np.int64(4)}
Outlier removal dengan consensus:
Original samples: 40
Outliers removed: 2 (5.0%)
Clean samples: 38 (95.0%)
Distribusi kelas:
Original: {'asep_buka': np.int64(10), 'yotan_buka': np.int64(10), 'asep_tutup': np.int64(10), 'yotan_tutup': np.int64(10)}
Clean: {'asep_buka': np.int64(10), 'asep_tutup': np.int64(10), 'yotan_tutup': np.int64(10), 'yotan_buka': np.int64(8)}
Removed: {'yotan_buka': np.int64(2)}
Dataset clean disimpan:
train_features_clean.csv: (156, 8)
val_features_clean.csv: (38, 8)
train_outliers_removed.csv: (4, 8)
val_outliers_removed.csv: (2, 8)
